The Superior Instruments Co. Model 76 Bridge part 6: Powering up the SICo 76.
Thursday, March 26, 2026 at 08:10:47

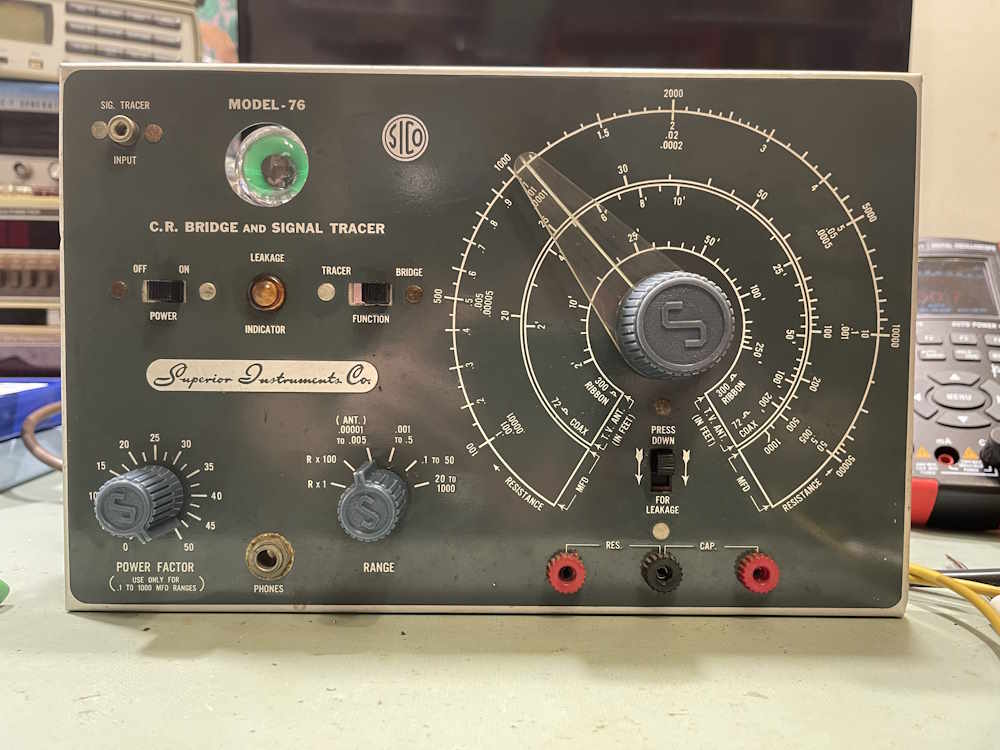

It’s time to power up the unit. I brought it up with a death cheater, and B+ settled in around 130VDC.

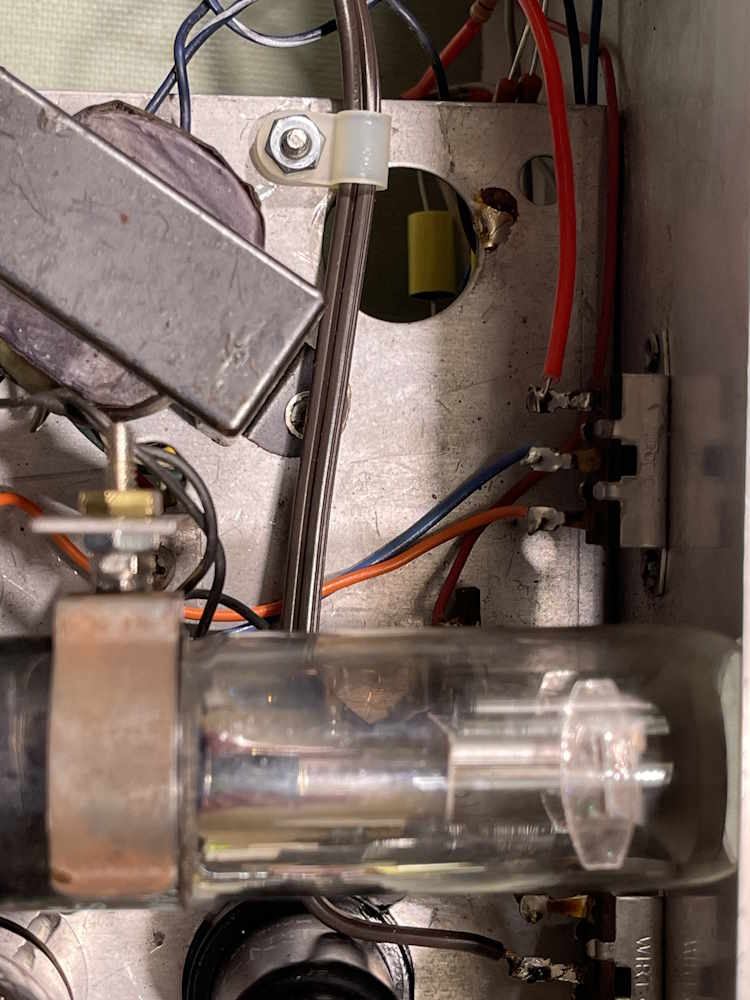

That’s probably about right for this, so I replaced the death cheater with a normal cord:

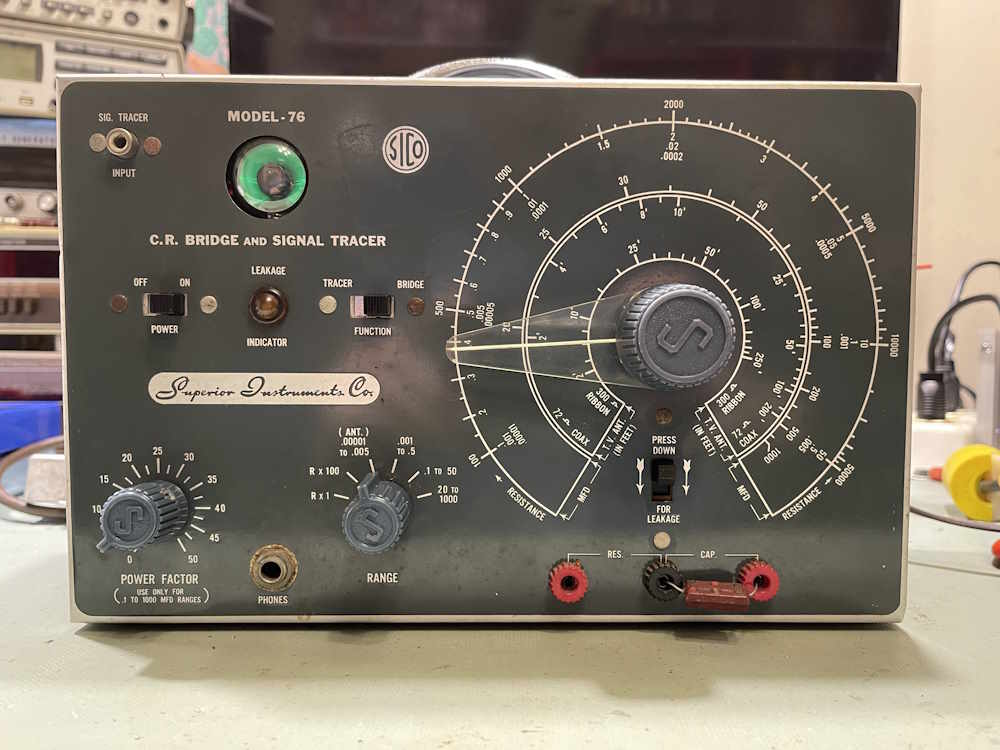

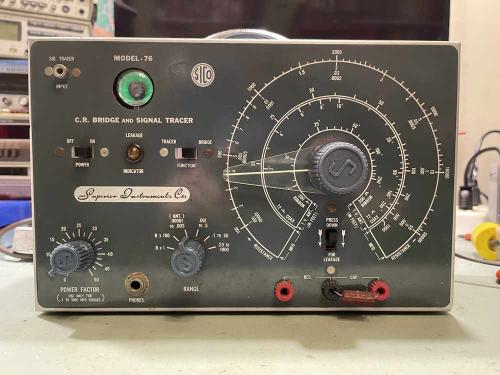

And brought it up assembled and stuck a capacitor in it.
Yeah, it doesn’t do much. Either all of the parts I chose are unable to be tested by this device due to bad components or something else, it didn’t do anything. The eye does close upon part connection, so something is home inside. Just…who knows what it is.
Next part of this series: Coming soon.
Previous part of this series: https://wereboar.com … ays-check-your-work/
Wrapup and final thoughts: Coming soon.
