An EICO 249 VTVM, Part 6a: Teardown, part 1.
Thursday, July 30, 2026 at 06:51:40
It’s time to start tearing into the EICO 249.

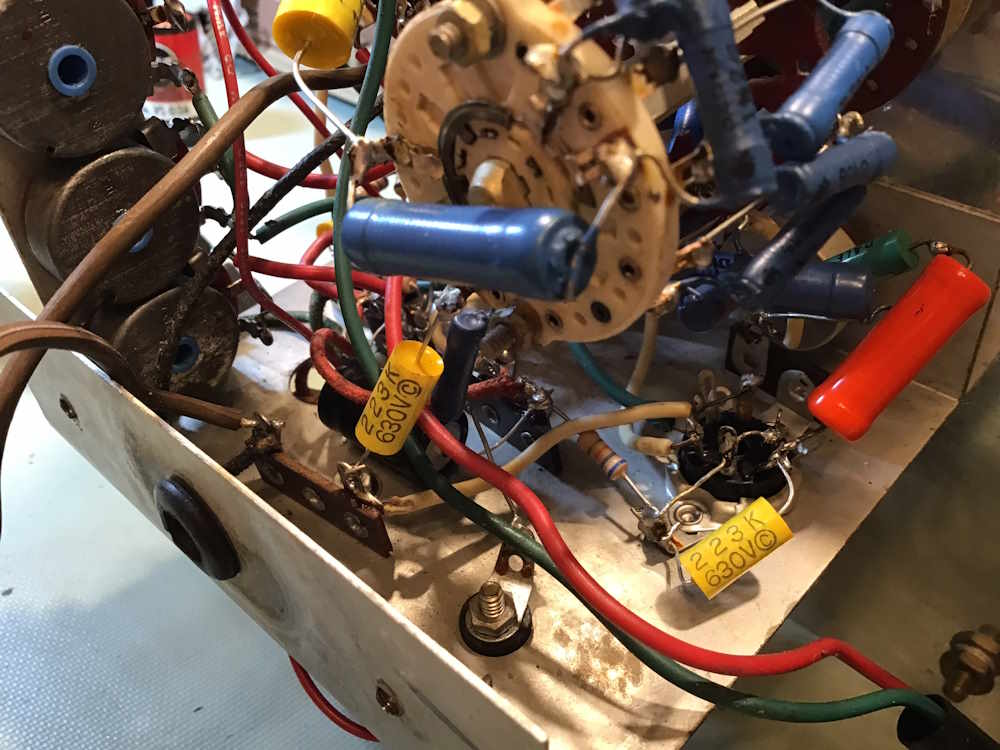

Before:

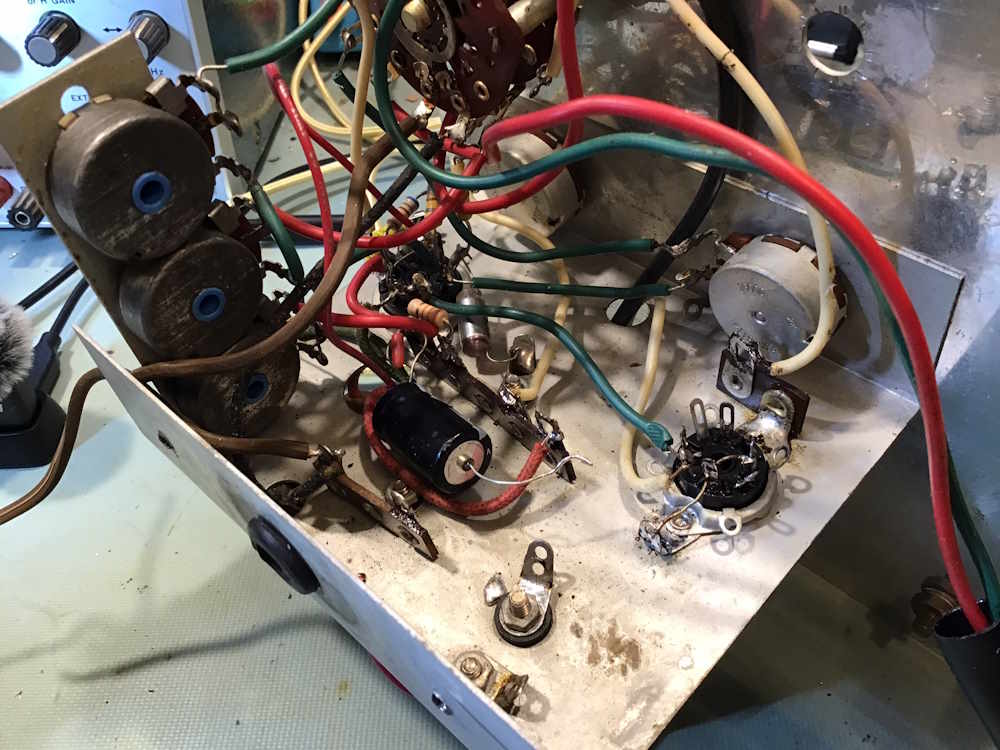

After:
I’ve removed the old range switch and will stash it for later. I’ve also started removing old parts and identifying wires to replace and other items that need a bit of attention. This will probably run a couple of parts before we start re-placing components…stay tuned!
Next part of this series: Coming soon.
Previous part of this series: https://wereboar.com … -rectifier-replaced/
Wrapup and final thoughts: Coming soon.
References
Manual set: https://wereboar.com … with%20schematic.zip
Youtube Playlist: https://www.youtube. … k&list=PLbV6LYdZISZI
The playlist has more videos scheduled for much later, there are several months difference between here and YouTube.
